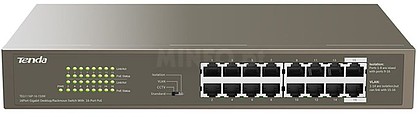

Partnumber: TEG1116P-16-150W
Estándar y protocolo
ieee 802.3 - ieee 802.3u - ieee 802.3ab - ieee 802.3x - ieee 802.3af - ieee 802.3at
indicadores
16*link - act per device
16*poe per device
1*power per device
interfaz
16 10 - 100 - 1000base - t ports(data - power)
protección contra rayos
6kv
almacenamiento y retransmisión
yes
capacidad de intercambio
32 gbps
velocidad de reenvío de paquetes
23.6mpps
ram data buffer
4mb
tabla de direcciónes mac
4k
administración de alimentación poe
port 1 - 16 support ieee802.3at - af poe standard
poe through pin
1 2 4 5 +
3 6 7 8 -
voltaje de entrada
ac 100 - 240v50 - 60hz
dimensiónes
294*178*44mm ( w x d x h )
consumo de potencia
in full configuratión: < 150w
poe max power supply:135w
características de los puertos
standard: the switch functións as a common unmanaged switch and all the
ports of the switch can communicate with each other.
cctv: the port cache is optimized and poe ports 1 - 8 have higher priorities
over the other ports. all the ports of the switch can communicate with each
other.
vlan: ports 1 to 14 are isolated from each other - but can communicate with
ports 15 and 16 (uplink ports) respectively.
isolatión: ports 1 to 8 and ports 9 to 16 belong to two di erent vlan.this mode
can be used to isolate supervisión network and wireless network to make
them not interfere with each other.
entorno
operating temperature: 0~40 (32~104)
storage temperature: - 40~70 ( - 40~158)
operating humidity: 10%~90% non - condensing
storage humidity: 5%~90% non - condensing
