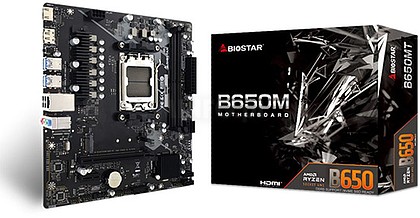

Partnumber: B650MT
Chipset AMD B650
• CPU SUPPORT Socket AM5 support AMD Ryzen? 7000 series Processors
• Support for future AMD Ryzen processors with BIOS update
• * Please refer to www.biostar.com.tw for CPU support list.
• MEMORY AMD Ryzen 7000 series Processors:
• Supports Dual Channel DDR5 4800/ 5200/ 5400(OC)/ 5600(OC)/ 6000+(OC)
• 2 x DDR5 DIMM Memory Slot, Max. Supports up to 96 GB Memory
• Each DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module
• * Please refer to www.biostar.com.tw for Memory support list.
• INTEGRATED VIDEO By CPU model
• Supports DX12
• Supports HDCP
• STORAGE Total support 1 x M.2 Socket and 4 x SATA (6Gb/s) ports
• AMD Ryzen 7000 Series Processors
• 1 x M.2 (Key M) Socket (M2M_CPU) :
• Supports M.2 Type 2242/ 2260/ 2280 SSD module
• Supports PCIe 4.0 x 4 (64Gb/s) - NVMe SSD
• AMD B650 Chipset
• 4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
• LAN Realtek RTL8111H
• 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
• AUDIO CODEC ALC897
• 7.1 Channels, High Definition Audio, Hi-Fi
• USB 1 x USB 3.2 Gen2 Type-C port (1 via internal headers)
• 6 x USB 3.2 Gen1 ports (4 on rear I/Os and 2 via internal headers)
• 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
• EXPANSION SLOT AMD Ryzen 7000 Series Processors
• 1 x PCIe 4.0 x16 Slot (x16 or x8/x8 mode)
• AMD B650 Chipset
• 1 x PCIe 3.0 x1 Slot
• REAR I/O 1 x BIOS UPDATE Button
• 1 x HDMI Port (HDMI1.4)
• 1 x DP Port (DP1.2)
• 4 x USB 3.2 (Gen1) Type-A Ports
• 2 x USB 2.0 Type-A Ports
• 1 x Giga LAN port
• 3 x Audio Jack
• INTERNAL I/O 4 x SATA III Connector (6Gb/s)
• 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
• 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
• 1 x USB 3.2 (Gen2) Type-C Header
• 1 x 8-Pin Power Connector
• 1 x 24-Pin Power Connector
• 1 x CPU Fan Connector
• 1 x System Fan Connector
• 1 x CPU water cooling connector (CPU_OPT)
• 1 x Front Panel Header
• 1 x Front Audio Header
• 1 x Internal Stereo Speaker Header
• 1 x Clear CMOS Header
• 1 x COM Port Header
• 1 x TPM Header
• H/W MONITORING CPU / System Temperature Monitoring
• CPU / System Fan Monitoring
• Smart / Manual CPU Fan Control
• CPU/DDR Voltage Monitoring
• DIMENSION Micro ATX Form Factor Dimension: 22.1cm x 23.5cm ( W x L )
• OS SUPPORT Supports Windows 10(64bit)/ 11(64bit)
• ?Biostar reserves the right to add or remove support for any OS with or without notice.
• BUNDLE SOFTWARE BullGuard
• ACCESSORIES 2 x SATA Cable
• 1 x I/O Shield
• 1 x DVD Driver
• 1 x Quick Guide
• 1 x M.2 Anchor
