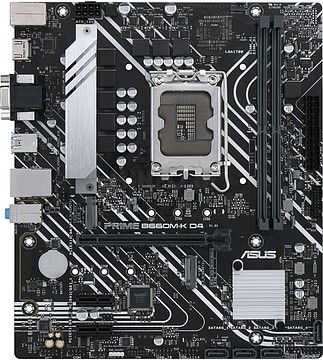

Partnumber: 90MB1950-M0EAY0
Cpu
intel® socket lga1700 for 12th gen intel® core - pentium® gold and
celeron® processors
intel® socket lga1700 for 12th gen intel® core - pentium® gold and
celeron® processors*



supports intel® turbo boost technology 2.0 and intel® turbo boost max
technology 3.0**

* refer to www.asus.com for cpu support list.

** intel® turbo boost max technology 3.0 support depends on the cpu
types.

memoria
2x dimm - max. 64gb - ddr4 5333(oc) - 5000(oc) - 4800(oc) - 4600(oc) - 4400
(oc) - 4266(oc) - 4000(oc) - 3733(oc) - 3600(oc) - 3466(oc) - 3400(oc) - 3333
(oc) - 3200 - 3000 - 2933 - 2800 - 2666 - 2400 - 2133 non - ecc - un - buffered memory*

dual channel memory architecture

supports intel® extreme memory profile (xmp)

* actual memory data rate depends on the cpu types and dram modules -
for more informatión refer to www.asus.com for memory support list.

gráficos
1 x d - sub
1 x d - sub port

1 x hdmi® port**

* graphics specificatións may vary between cpu types. please refer to
www.intel.com for any updates.

** support 4k@60hz as specified in hdmi® 2.1.

ranuras de expansión
intel® 12th gen processors

1 x pcie 4.0 - 3.0 x16 slot

intel® b660 chipset

2 x pcie 3.0 x1 slots

almacenamiento
supports 2 x m.2 slots and 4 x sata 6gb - s ports
total supports 2 x m.2 slots and 4 x sata 6gb - s ports*

intel® 12th gen processors

m.2_1 slot (key m) - type 2242 - 2260 - 2280

- intel® 12th gen processors support pcie 4.0 x4 mode.

intel®b660 chipset**

m.2_2 slot (key m) - type 2242 - 2260 - 2280 (supports pcie 4.0 x4)

4 x sata 6gb - s ports

* intel® rapid storage technology supports sata raid 0 - 1 - 5 - 10.

** intel® rapid storage technology supports intel® optane memory h
series on pch attached m.2 slots.

ethernet
1 x realtek 1gb ethernet
usb
4 x usb 3.2 gen 1 ports (4 x type - a)

2 x usb 2.0 ports (2 x type - a


usb frontal:total 6 ports
1 x usb 3.2 gen 1 header supports additiónal 2 usb 3.2 gen 1 ports

2 x usb 2.0 headers support additiónal 4 usb 2.0 ports

audio
realtek 7.1 surround sound high definitión audio codec*

- supports: jack - detectión - multi - streaming - front panel jack - retasking

- supports up to 24 - bit - 192 khz playbackpulgadas

audio features

- audio shielding

- premium audio capacitors

- dedicated audio pcb layers

* a chassis with an hd audio module in the front panel is required to
support 7.1 surround sound audio output.

puertos de e - s del panel posterior
4 x usb 3.2 gen 1 ports (4 x type - a)

2 x usb 2.0 ports (2 x type - a)

1 x d - sub port

1 x hdmi® port

1 x realtek 1gb ethernet port

3 x audio jacks

1 x ps - 2 keyboard - mouse combo port

conectores de e - s internos
fan and cooling related

1 x 4 - pin cpu fan header

1 x 4 - pin chassis fan header

power related

1 x 24 - pin main power connector

1 x 8 - pin +12v power connector

storage related

2 x m.2 slots (key m)

4 x sata 6gb - s ports

usb

1 x usb 3.2 gen 1 header supports additiónal 2 usb 3.2 gen 1 ports

2 x usb 2.0 headers support additiónal 4 usb 2.0 ports

miscellaneous

1 x rgb header

1 x clear cmos header

1 x com port header

1 x front panel audio header (aafp)

1 x s - pdif out header

1 x speaker header

1 x spi tpm header (14 - 1pin)

1 x 10 - 1 pin system panel header

características especiales
asus 5x protection iii

- digi+ vrm

- languard

- overvoltage protectión

- safeslot core

- stainless - steel back i - o

asus q - design

- q - dimm

- q - slot

asus ez diy

- procool

asus thermal solutión

- vrm heatsink design

asus lighting control

- rgb header

funciónes de software
asus exclusive software

armoury crate

ai suite 3

- performance and power saving utility

turbov evo

epu

digi+ vrm

fan xpert

asus cpu - z

nortón anti - virus software (free trial versión)

winrar

uefi bios

asus ez diy

- asus crashfree bios 3

- asus ez flash 3

- asus uefi bios ez mode

bios
128 mb flash rom - uefi ami bios

manejabilidad
wol by pme - pxe

accesorios
cables

2x sata 6gb - s cables

miscellaneous

1 x i - o shield

2 x m.2 anchors

installatión media

1 x support dvd

documentatión

1 x user manual

sistema operativo
windows® 11 64 - bit - windows® 10 64 - bit
windows® 11 64 - bit - windows® 10 64 - bit

factor de forma
microatx
24.4cm x 21.1cm
