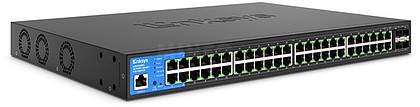

Partnumber: LGS352C-EU
Power Consumption
• 43.87W
•
• Jumbo Frame (FE, GE)
• 12Kbytes
•
• LEDs
• Power, Fault
•
• VLAN
• Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support
•
• Memory
• 512MB
•
• Forwarding Rate
• 130.95 Mpps
•
• Dimensions (LxWxH)
• (17.32 x 10.24 x 1.73 in)
• 3468 g (7.65 lb)
• 440 x 260 x 44 mm
•
• Weight
• 3468 g (7.65 lb)
•
• Number of VLANs Supported
• 256 active VLANs (4,096 range)
•
• Operating Humidity
• 10 to 90% RH
•
• Operating Temperature
• 0 to 50°C (32 to 122°F)
•
• Ports
• 4 10G SFP+
• 48 Gigabit Ethernet
•
• Security Features
• 802.1x Radius authentication
• DHCP snooping
• DOS Attack Prevention
• IP-MAC binding
• Port Isolation (Protected Ports)
• Port Security (256 max entries per port)
•
• Rate Limiting
• Rate limit according to network speed, 12kbps~1000Mbps: in steps of 16kbps
•
• Power Input
• 1.5A
• 100?240V
• 50?60 Hz
•
• Spanning Tree
• IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances)
•
• Quality Of Service
• 8 hardware queues
• Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
• Strict, Weighted Round Robin (WRR)
•
• Storage Temperature
• -20 to 70°C (-4 to 158°F)
•
• Warranty and Support
• 2 Year Warranty (Australia and New Zealand)
• 5 Year Warranty (most countries)
•
• RMON
• Embedded remote monitoring (RMON 1, 2, 3, 9) software agent support for enhanced traffic management, monitoring, and analysis
•
• MAC Address Table Size
• 32K
•
• Switching Capacity
• 176 Gbps
•
• HOL Blocking Prevention
• Head of line (HOL) blocking prevention
•
• Auto Voice VLAN
• Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
•
• Other Management
• Console Port, DHCP client, system log, configuration upload and backup via HTTP or TFTP, PING, Traceroute, dual images, SNTP
•
• Link Aggregation
• IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group
•
• Access Control
• Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny
•
• Storm Control
• Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps
•
• Management Interface
• HTTP
• HTTPS
•
• Routing
• Static Routing, IPv4 (63 max entries), IPv6 (21 max entries)
•
• SNMP
• Version 1
• Version 2c
• Version 3
•
• Fans
• 1, 8200 rpm (at full speed)
•
• Storage Humidity
• 5 to 95% RH (non-condensing)
•
• IGMP Snooping
• IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requesters, supports 256 multicast groups
•
• Power Saving
• EEE
•
• Port Mirroring
• Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer
•
• Firmware Upgrade
• Web Browser (HTTP/HTTPS)
